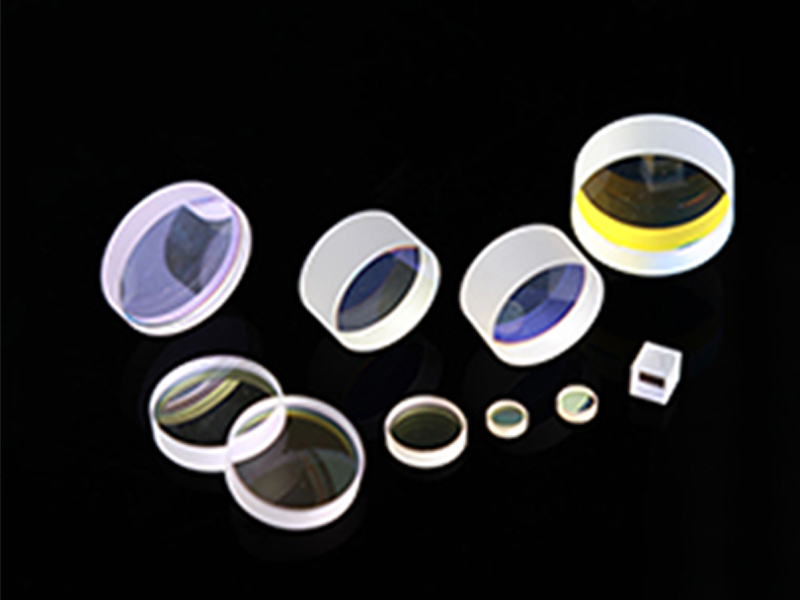

一站式供應各種型號、各種波長、各種材質和輸出率的激光反射鏡，為了方便您的挑選，我們羅列了以下標準產品型號供您參考。如果在以下列表中找不到的規格，請聯系我們獲取您所需要的產品規格及報價!
我們一站式供應各種類型的激光鏡片,激光反射鏡,激光輸出鏡,光學反射鏡,激光全反鏡,45度反射鏡,45度折射鏡,45度全反鏡 ,YAG全反鏡,YAG半反鏡,硅反射鏡,硅轉鏡,銅鏡,鉬鏡,鉬反射鏡，可提供選型、技術指導、安裝培訓、個性定制等全生命周期、全流程服務，歡迎聯系我們的產品經理！

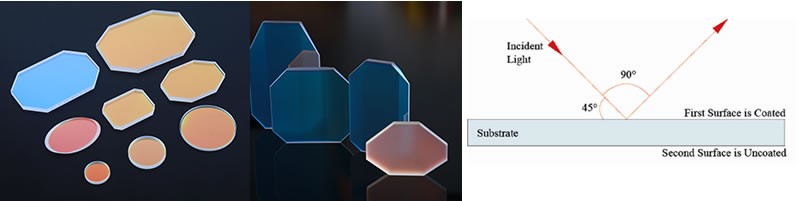

常用波長包括355nm, 532nm, 650nm, 808nm, 980nm, 1064nm, 1319nm和1550nm，入射角0 到45 度，反射率高達99.9%以上，具有很高的損傷閾值。.
| 標準產品 | 超高精度產品 | |
| 面型 | 平平 | 平平 |
| 材料 | BK7 | BK7 |
| 直徑公差 | +0/-0.1mm | +0/-0.1mm |
| 厚度公差 | ±0.2mm | ±0.1mm |
| 平整度 | λ/2 @632.8nm | λ/10 @632.8nm |
| 有效孔徑 | 90% | 90% |
| 光潔度 | 40-20 | 20-10 |
| 平行度 | <1arc min | <10arc min |
| 側邊 | <0.25mm x 45 º | <0.25mm x 45 º |
| 設計波長 | 587.6nm | 587.6nm |
| 標準產品 | 超高精度產品 | ||||
| 產品型號 | D (mm) | T (mm) | 產品型號 | D (mm) | T (mm) |
| STJ-XXXX-MB-6.0-3-A | 6 | 3 | STJ-XXXX-MHB-6.0-3-A | 6.0 | 3.0 |
| STJ-XXXX-MB-10.0-3-A | 10 | 3 | STJ-XXXX-MHB-10.0-3-A | 10.0 | 3.0 |
| STJ-XXXX-MB-12. 7-3-A | 12.7 | 3 | STJ-XXXX-MHB-12. 7-3-A | 12.7 | 3.0 |
| STJ-XXXX-MB-15.0-3-A | 15 | 3 | STJ-XXXX-MHB-15.0-3-A | 15.0 | 3.0 |
| STJ-XXXX-MB-15.0-4-A | 15 | 4 | STJ-XXXX-MHB-15.0-4-A | 15.0 | 4.0 |
| STJ-XXXX-MB-20.0-4-A | 20 | 4 | STJ-XXXX-MHB-20.0-4-A | 20.0 | 4.0 |
| STJ-XXXX-MB-20.0-5-A | 20 | 5 | STJ-XXXX-MHB-20.0-5-A | 20.0 | 5.0 |
| STJ-XXXX-MB-25.0-4-A | 25 | 4 | STJ-XXXX-MHB-25.0-4-A | 25.0 | 4.0 |
| STJ-XXXX-MB-25.4-4-A | 25.4 | 4 | STJ-XXXX-MHB-25.4-4-A | 25.4 | 4.0 |
| STJ-XXXX-MB-30.0-4-A | 30 | 4 | STJ-XXXX-MHB-30.0-4-A | 30.0 | 4.0 |
| STJ-XXXX-MB-30.30-4-A | 30x30 | 4 | STJ-XXXX-MHB-30.30-4-A | 30x30 | 4.0 |
| STJ-XXXX-MB-40.0-3-A | 40 | 3 | STJ-XXXX-MHB-40.0-3-A | 40.0 | 3.0 |
| STJ-XXXX-MB-40.0-4-A | 40 | 4 | STJ-XXXX-MHB-40.0-4-A | 40.0 | 4.0 |
| STJ-XXXX-MB-42.0-3-A | 42 | 3 | STJ-XXXX-MHB-42.0-3-A | 42.0 | 3.0 |
| STJ-XXXX-MB-48.0-3-A | 48 | 3 | STJ-XXXX-MHB-48.0-3-A | 48.0 | 3.0 |
| STJ-XXXX-MB-50.0-4-A | 50 | 4 | STJ-XXXX-MHB-50.0-4-A | 50.0 | 4.0 |
| STJ-XXXX-MB-50.8-4-A | 50.8 | 4 | STJ-XXXX-MHB-50.8-4-A | 50.8 | 4.0 |
訂貨須知：
訂貨時請先選好產品型號，并寫明 (1) 激光波長 (XXXX nm) 和 AOI (入射角, A，一般是0或45度)，如STJ-1064-MB-50.8-4-45 是45度入射角1064nm波長的標準K7全反鏡。

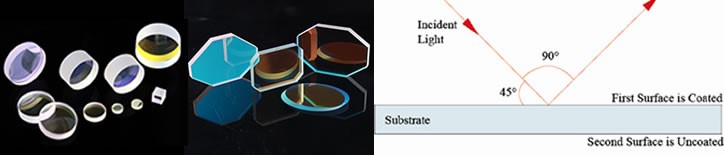

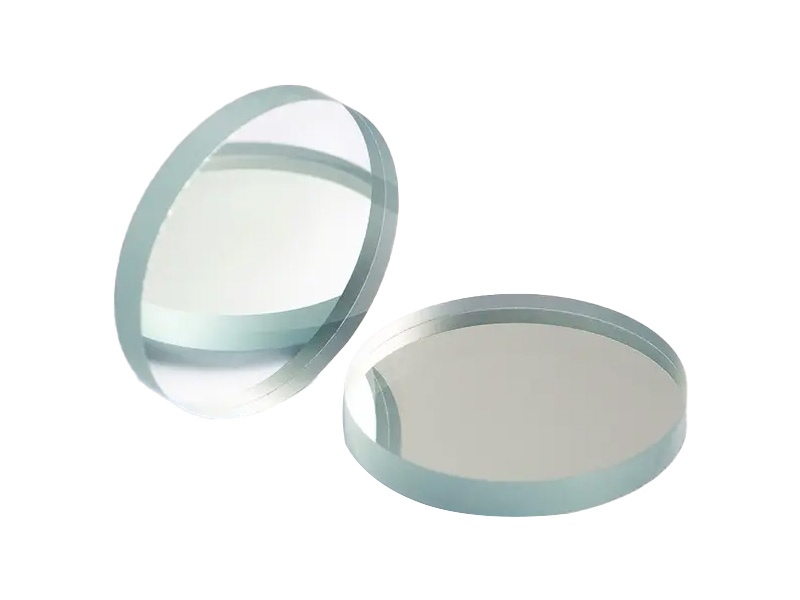

| 標準產品 | 超高精度產品 | |
| 面型 | 平平 | 平平 |
| 材料 | 熔融石英 | 熔融石英 |
| 直徑公差 | +0/-0.1mm | +0/-0.1mm |
| 厚度公差 | ±0.2mm | ±0.1mm |
| 平整度 | λ/2 @632.8nm | λ/10 @632.8nm |
| 有效孔徑 | 90% | 90% |
| 光潔度 | 40-20 | 20-10 |
| 平行度 | <1arc min | <10arc min |
| 側邊 | <0.25mm x 45 º | <0.25mm x 45 º |
| 設計波長 | 587.6nm | 587.6nm |
| 標準產品 | 超高精度產品 | ||||
| 產品型號 | D (mm) | T (mm) | 產品型號 | D (mm) | T (mm) |
| STJ-XXXX-MJ-6.0-3-A | 6 | 3 | STJ-XXXX-MHJ-6.0-3-A | 6 | 3 |
| STJ-XXXX-MJ-10.0-3-A | 10 | 3 | STJ-XXXX-MHJ-10.0-3-A | 10 | 3 |
| STJ-XXXX-MJ-12. 7-3-A | 12.7 | 3 | STJ-XXXX-MHJ-12.7-3-A | 12.7 | 3 |
| STJ-XXXX-MJ-15.0-3-A | 15 | 3 | STJ-XXXX-MHJ-15.0-3-A | 15 | 3 |
| STJ-XXXX-MJ-15.0-4-A | 15 | 4 | STJ-XXXX-MHJ-15.0-4-A | 15 | 4 |
| STJ-XXXX-MJ-20.0-4-A | 20 | 4 | STJ-XXXX-MHJ-20.0-4-A | 20 | 4 |
| STJ-XXXX-MJ-20.0-5-A | 20 | 5 | STJ-XXXX-MHJ-20.0-5-A | 20 | 5 |
| STJ-XXXX-MJ-25.0-4-A | 25 | 5 | STJ-XXXX-MHJ-25.0-4-A | 25 | 5 |
| STJ-XXXX-MJ-25.4-4-A | 25.4 | 4 | STJ-XXXX-MHJ-25.4-4-A | 25.4 | 4 |
| STJ-XXXX-MJ-30.0-4-A | 30 | 4 | STJ-XXXX-MHJ-30.0-4-A | 30 | 4 |
| STJ-XXXX-MJ-30.30-4-A | 30x30 | 4 | STJ-XXXX-MHJ-30.30-4-A | 30x30 | 4 |
| STJ-XXXX-MJ-40.0-3-A | 40 | 3 | STJ-XXXX-MHJ-40.0-3-A | 40 | 3 |
| STJ-XXXX-MJ-40.0-4-A | 40 | 4 | STJ-XXXX-MHJ-40.0-4-A | 40 | 4 |
| STJ-XXXX-MJ-42.0-3-A | 42 | 4 | STJ-XXXX-MHJ-42.0-3-A | 42 | 4 |
| STJ-XXXX-MJ-48.0-3-A | 48 | 4 | STJ-XXXX-MHJ-48.0-3-A | 48 | 4 |
| STJ-XXXX-MJ-50.0-4-A | 50 | 4 | STJ-XXXX-MHJ-50.0-4-A | 50 | 4 |
| STJ-XXXX-MJ-50.8-4-A | 50.8 | 4 | STJ-XXXX-MHJ-50.8-4-A | 50.8 | 4 |
訂貨須知：
訂貨時請先選好產品型號，并寫明 (1) 激光波長 (XXXX nm) 和 AOI (入射角, A，一般是0或45度)，如STJ-1064-MJ-50.8-4-45 是45度入射角1064nm波長的標準石英全反鏡。

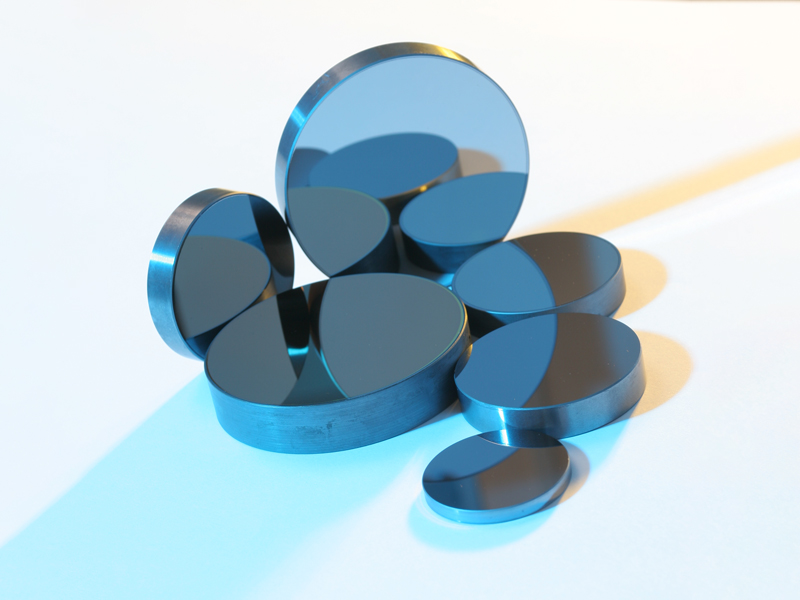

| 產品型 | 基材 | Dia mm | ET mm | A deg | T % | R % | S2 ROC m | Coating |
| LM-SI-5.9SIS4-03 | Si | 15 | 4 | 45 | 3 | 99.93 | 3 | SuperMax |
| LM-SI-7.5SID2-00 | Si | 19 | 2 | 45 | 0 | 99 | 平 | SiDual |
| LM-SI-7.5SIS3-00 | Si | 19 | 3 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-7.5SIS3-05 | Si | 19 | 3 | 45 | 0 | 99.93 | 5 | SuperMax |
| LM-SI-7.5SIS3-07 | Si | 19 | 3 | 45 | 0 | 99.93 | 7 | SuperMax |
| LM-SI-7.5SIS4-05 | Si | 19 | 4 | 45 | 0 | 99.93 | 5 | SuperMax |
| LM-SI-7.5SIS5-075 | Si | 19 | 5 | 45 | 0 | 99.93 | 0.75 | SuperMax |
| LM-SI-10SIF3-00 | Si | 25.4 | 3 | 45 | 0 | 99 | 平 | PFM |
| LM-SI-10SIF5-00 | Si | 25.4 | 5 | 45 | 0 | 99 | 平 | PFM |
| LM-SI-10SIS3-00 | Si | 25.4 | 3 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-10SIS3-05 | Si | 25.4 | 3 | 45 | 0 | 99.93 | 5 | SuperMax |
| LM-SI-10SIS3-10 | Si | 25.4 | 3 | 45 | 0 | 99.93 | 10 | SuperMax |
| LM-SI-10SIS4-00 | Si | 25.4 | 4 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-10SIS5-00 | Si | 25.4 | 5 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-11SIS3-00 | Si | 28 | 3 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-11SIS6-00 | Si | 28 | 6 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-15SIS6.3-07 | Si | 38.05 | 6.3 | 45 | 0 | 99.93 | 7 | SuperMax |
| LM-SI-15SIS6.3-7M | Si | 38.05 | 6.3 | 45 | 0 | 99.93 | 7.5 | SuperMax |
| LM-SI-15SIS6-00 | Si | 38.05 | 6 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-15SIS9.5-00 | Si | 38.05 | 9.5 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-15SIS9.7-00 | Si | 38.05 | 9.7 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-15SID-00 | Si | 38.05 | 4 | 45 | 0 | 99 | 平 | SiDual |
| LM-SI-15SIF4-00 | Si | 38.05 | 4 | 45 | 0 | 99 | 平 | PFM |
| LM-SI-15SIS4-10CC | Si | 38.05 | 4 | 45 | 0 | 99.93 | 10 | SuperMax |
| LM-SI-15SIS5-00 | Si | 38.05 | 5 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-15SIS6.3-00 | Si | 38.1 | 6.3 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-15SIS6.6-00 | Si | 38.1 | 6.6 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-16.1SIS5-00 | Si | 41 | 5 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-17.5SIS9.5-00 | Si | 44.45 | 9.5 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-17.5SIS9-00 | Si | 44.5 | 9 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-17.5SIS4-00 | Si | 44.5 | 4 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-19.7SIS10-00 | Si | 50 | 10 | 45 | 0 | 98.6 | 平 | SuperMax |
| LM-SI-19.7SIS5-00 | Si | 50 | 5 | 45 | 0 | 98.6 | 平 | SuperMax |
| LM-SI-20SIF10-00 | Si | 50.8 | 10 | 45 | 0 | 99 | 平 | PFM |
| LM-SI-20SIS10-00 | Si | 50.8 | 10.2 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-20SIS10-00MA | Si | 50.8 | 10 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-20SIS5-00 | Si | 50.8 | 5.1 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-20SIS9.5-00 | Si | 50.8 | 9.5 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-26.8SIS20-00M | Si | 68 | 20 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-30SIS6.35-00 | Si | 76.2 | 6.35 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-SI-30SMA12.7-00 | Cu | 76.2 | 12.7 | 45 | 0 | 98.6 | 平 | SuperMax |
說明：A：入射角； ET：邊緣厚度；T(%)：透過率；R (%)：反射率；ROC：曲率半徑。
45°入射角
10.6 μm鍍膜，反射率>99.6%
10.6 μm吸收率 < 0.30%
| 產品型號 | 直徑 | 厚度 |
| LM-SI-TMS-0512-EM | 0.500" | 0.120" |
| LM-SI-TMS-0712-EM | 0.750" | 0.120" |
| LM-SI-TMS-0912-EM | 0.875" | 0.120" |
| LM-SI-TMS-1012-EM | 1.000" | 0.120" |
| LM-SI-TMS-1112-EM | 1.100" | 0.120" |
| LM-SI-TMS-1512-EM | 1.500" | 0.120" |
| LM-SI-TMS-1516-EM | 1.500" | 0.160" |
| LM-SI-TMS-1816-EM | 1.750" | 0.160" |
| LM-SI-TMS-2020-EM | 2.000" | 0.200" |
| LM-SI-TMS-2525-EM | 2.500" | 0.250" |
| LM-SI-TMS-3025-EM | 3.000" | 0.250" |
| LM-SI-TMS-4035-EM | 4.000" | 0.350" |
45°入射角
10.6 μm鍍膜，反射率>99.7%；紅光633nm和650nm反射率>85%
10.6 μm吸收率 < 0.30%
| Model Number | Diameter | Thickness |
| LM-SI-TMS-0512-DBMR | 0.500" | 0.120" |
| LM-SI-TMS-0712-DBMR | 0.750" | 0.120" |
| LM-SI-TMS-0912-DBMR | 0.875" | 0.120" |
| LM-SI-TMS-1012-DBMR | 1.000" | 0.120" |
| LM-SI-TMS-1112-DBMR | 1.100" | 0.120" |
| LM-SI-TMS-1512-DBMR | 1.500" | 0.120" |
| LM-SI-TMS-1516-DBMR | 1.500" | 0.160" |
| LM-SI-TMS-1816-DBMR | 1.750" | 0.160" |
| LM-SI-TMS-2020-DBMR | 2.000" | 0.200" |
| LM-SI-TMS-2525-DBMR | 2.500" | 0.250" |
| LM-SI-TMS-3025-DBMR | 3.000" | 0.250" |
| LM-SI-TMS-4035-DBMR | 4.000" | 0.350" |

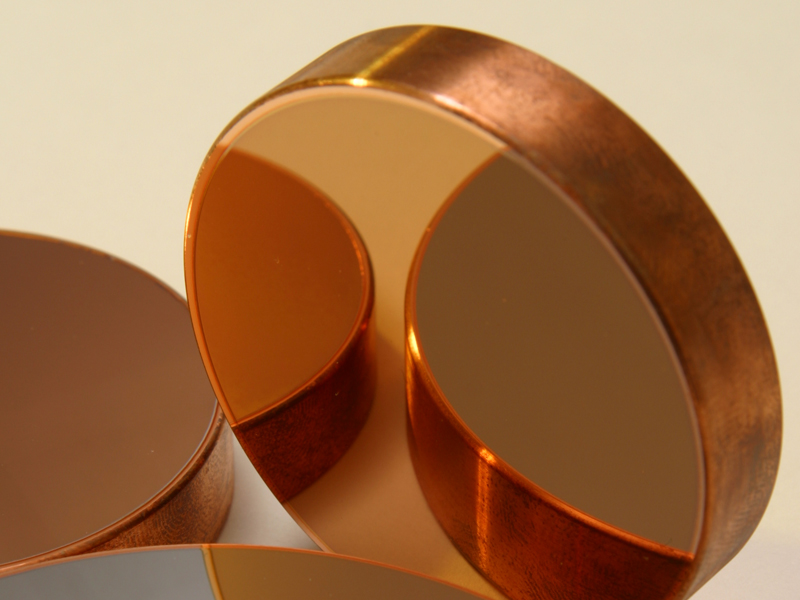

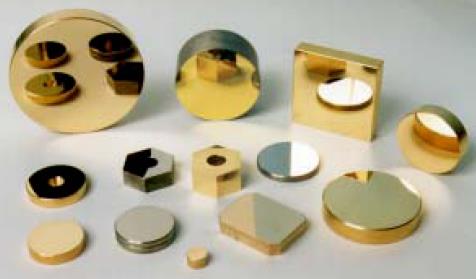

| 產品型 | M | Dia mm | ET mm | A deg | T % | R % | S2 ROC m | 鍍膜 |
| LM-CU-11SMA6-00 | Cu | 28 | 6 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-CU-15NCA8-00 | Cu | 38 | 8 | 45 | 0 | 99.93 | 平 | NiCu |
| LM-CU-15NCW15-00 | Cu | 38 | 15 | 45 | 0 | 98.6 | 平 | NiCu |
| LM-CU-D38-T10-A45 | Cu | 38 | 10 | 45 | 0 | 98.6 | 平 | NiCu |
| LM-CU-15NCA10-00 | Cu | 38 | 6 | 45 | 0 | 98.6 | 平 | NiCu |
| LM-CU-15NCA6-00 | Cu | 38 | 6 | 45 | 0 | 98.6 | 平 | SuperMax |
| LM-CU-15SMA6-00 | Cu | 38 | 6 | 45 | 0 | 99.93 | 平 | SuperMax |
| LM-CU-15SMA6-15 | Cu | 38.05 | 6 | 45 | 0 | 99.93 | 15 | SuperMax |
| LM-CU-19.7NCA10-00 | Cu | 50 | 10 | 45 | 0 | 98.6 | 平 | NiCu |
| LM-CU-19.7NCW25-00 | Cu | 50 | 25 | 45 | 0 | 98.6 | 平 | NiCu |
| LM-CU-19.7SMA10-1000CX | Cu | 50 | 6 | 45 | 0 | 98.6 | 平 | SuperMax |
| LM-CU-19.7SMA5-00 | Cu | 50 | 5 | 45 | 0 | 98.6 | 平 | SuperMax |
| LM-CU-19.7SMA9-00 | Cu | 50 | 9 | 45 | 0 | 98.6 | 平 | SuperMax |
| LM-CU-20NCA5-00 | Cu | 50.8 | 5 | 45 | 0 | 98.6 | 平 | NiCu |
| LM-CU-20SMA5-00 | Cu | 50.8 | 5 | 45 | 0 | 98.6 | 平 | SuperMax |
| LM-CU-23.6NCA10-00 | Cu | 60 | 10 | 45 | 0 | 98.6 | 平 | NiCu |
| LM-CU-23.6SMA6-00 | Cu | 60 | 6 | 45 | 0 | 98.6 | 平 | SuperMax |
| LM-CU-29.5NCA15-00 | Cu | 75 | 15 | 45 | 0 | 98.6 | 平 | NiCu |
| LM-CU-29.5NCW25-00 | Cu | 75 | 25 | 45 | 0 | 98.6 | 平 | NiCu |
| LM-CU-29.5SMA17-00 | Cu | 75 | 17 | 45 | 0 | 98.6 | 平 | SuperMax |
說明：A：入射角； ET：邊緣厚度；T(%)：透過率；R (%)：反射率；ROC：曲率半徑。

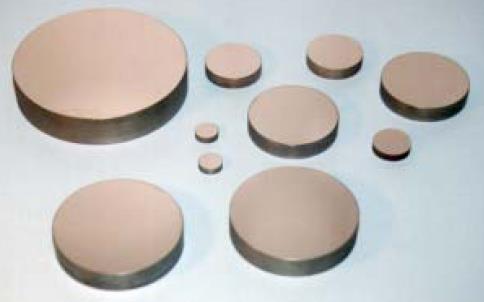

| 產品型 | M | Dia mm | ET mm | A deg | T % | R % | S2 ROC m | Coating |
| LM-MO-5.9MO2-00 | Mo | 15 | 2 | 0 | 0 | 98.5 | flat | Uncoated |
| LM-MO-15MO6-00 | Mo | 38 | 6 | 45 | 0 | 98.5 | flat | Uncoated |
| LM-MO-17.5MO8-00 | Mo | 44.5 | 8 | 45 | 0 | 98.5 | flat | Uncoated |
| LM-MO-19.7MO2-00 | Mo | 50 | 2 | 45 | 0 | 98.5 | flat | Uncoated |
| LM-MO-19.7MO3-00 | Mo | 50 | 3 | 45 | 0 | 98.5 | flat | Uncoated |
| LM-MO-19.7MO5-14 | Mo | 50 | 5 | 45 | 0 | 98.5 | flat | Uncoated |
| LM-MO-19.7MO6-00 | Mo | 50 | 6 | 45 | 0 | 98.5 | flat | Uncoated |
| LM-MO-20MO5-00 | Mo | 50.8 | 5.1 | 45 | 0 | 98.5 | flat | Uncoated |
| LM-MO-23.6MO10-00 | Mo | 60 | 10 | 45 | 0 | 98.5 | flat | Uncoated |
| LM-MO-29.5MO15-00 | Mo | 75 | 15 | 45 | 0 | 98.5 | flat | Uncoated |
說明：A：入射角； ET：邊緣厚度；T(%)：透過率；R (%)：反射率；ROC：曲率半徑。
